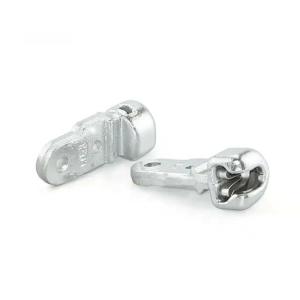

Pole Line Hardware Socket Eye Hot Dip Galvanized Electrical Socket Clevis

Brand Name : LJ

Model Number : LJ-PF

Certification : ISO9001

Place of Origin : Luohe China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000000/per month

Delivery Time : 20

Packaging Details : Wooden Case Package

Name : Overhead Line Fittings

Material : Hot-dip galvanized steel

Application : Connecting the overhead line fitting strings

Sample : Immediately and Free

Customized : Yes

Color : Silver

Contact Now

Pole Line Hardware Socket Eye Power Fitting Hot Dip Galvanized Electrical Socket Clevis

Overhead Line Fittings

Ball Eyes is used for connecting the overhead line fitting strings with the insulator ball socket end, and supporting other fittings to form one insulator fitting string, and connecting the wire to the poles or towers.

Socket Clevis Eyes is used for connecting the overhead line fitting strings with the insulator ball end end, and supporting other fittings to form one insulator fitting string, and connecting the wire to the poles or towers.

• The product is made of hot-dip galvanized steel;

• Meet the technical requirements o IEC 61284-1997 and conform to IEC 60120 coupling code 16,20 and 24

Technical data sheet

Catalog No.	Fig.	(mm)Dimensions							(kN) Rated Failure Load	(kg) Weight
Catalog No.	Fig.	h	d	φ	d1	d2	L1	L2	(kN) Rated Failure Load	(kg) Weight
Q-10N	1	152	16	14	17	33.3	51	55	100	0.7
Q-12N	1	165	18	14	17	33.3	68	55	120	0.8
Q-16N	1	185	20	14	21	41.0	75	60	160	1.5
Q-1ONP	2	152	19	14	17	33.3	51	55	100	0.9
Q-12NP	2	165	18	14	17	33.3	68	55	120	0.8

Catalog No.	Ball Code	(mm)Dimensions						(kN) Rated Failure Load	(kg) Weight
Catalog No.	Ball Code	H	B	φ	D1	D	H1	(kN) Rated Failure Load	(kg) Weight
QPJ-07100	16	100	16	18	17	33.3	50	70	0.8
QPJ-10110	16	110	16	20	17	33.3	50	100	0.9
QPJ-12110	16	110	16	24	17	33.3	50	120	0.9
QPJ-16120	20	120	18	26	21	41.0	55	160	1.0
QPJ-21120	20	120	20	26	21	41.0	60	210	1.0

Catalog No.	(mm)Dimensions					(kN) Rated Failure Load	(kg) Weight
Catalog No.	C	C1	C2	M	h	(kN) Rated Failure Load	(kg) Weight
WS-7	18	19.2	34.5	16	70	70	0.97
WS-10	20	19.2	34.5	18	85	100	1.20
WS-12	24	23.0	42.5	22	90	120	1.80
WS-16	26	23.0	42.5	24	95	160	2.60
WS-21	30	27.5	51.0	27	100	210	4.30
WS-30	38	27.5	51.0	36	110	300	5.70
WS-16G	22	23.0	42.5	24	95	160	2.64
WS-21G	24	23.0	42.5	24	105	210	3.50
WS-32G	32	27.5	51.0	30	110	320	4.80
WS-42G	36	32.0	59.0	36	120	420	5.60
WS-55G	40	36.0	67.5	42	140	550	11.0

Catalog No.	(mm)Dimensions					kN) Rated Failure Load	(kg) Weight
Catalog No.	b	C1	C2	h	φ	kN) Rated Failure Load	(kg) Weight
W-7A	16	19.2	34.5	70	20	70	0.82
W-7B	16	19.2	34.5	115	20	70	1.01
W1-10	18	19.2	34.5	85	20	100	0.90
W1-12	20	19.2	34.5	90	24	120	1.30
W-12	20	23.0	42.5	90	24	120	1.40
W-30	32	27.5	51.0	110	39	300	3.50

Advantage:

1, LJ Brand Since 1985, a professional power fittings solution brand

2, Belongs to Power China, one of the FORTUNE GLOBAL 500

3, Our customers from over 30 countries

Pole Line Hardware Socket Eye Hot Dip Galvanized Electrical Socket Clevis

About us

POWERCHINA Henan Electric Power Equipment Co., Ltd. is a subsidiary company of Power Construction Cooperation of China (POWERCHINA), one of the FORTUNE GLOBAL 500.

Professional customer service, product development, technical Support and after Sale Service.

POWERCHINA Henan Electric Power Equipment Co., Ltd, covering an area of 84000 square meters, was established in 1958.

POWERCHINA Henan Electric Power Equipment Co., Ltd has a total of more than 426 employees, including more than 128. engineers and technicians.
